ELH-70B9 code lock
Out of stock
€122.00

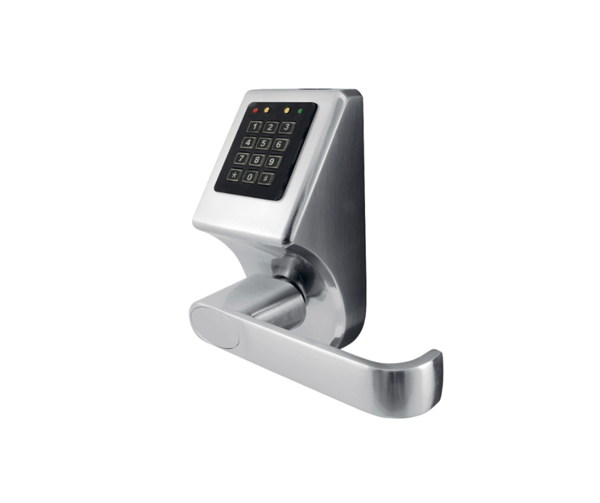

Door handles with push-button keypad and RFID reader
Write a question:
Suitable for doors: LEFT/RIGHT, operation inside buildings.
Functions:
Access to the premises with the introduction of a code combination on the keyboard;
Programming for the admission of a contactless card or RFID standard key fob;
An easy way to change the code combination;
In case of discharge or failure of alkaline batteries (1.5V AA), the lock can be opened conventional mechanical key, 2 pcs. included; From inside the room, you can always open the door by simply pressing the door handle.

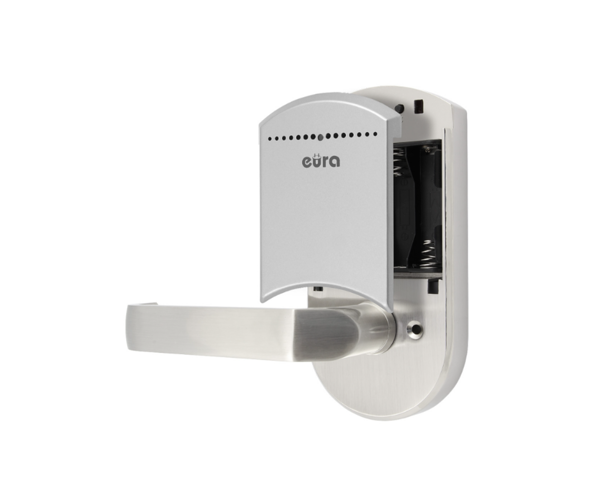

Powered by four AA batteries with a lifespan of up to 1 year. Batteries are not included.
In most cases, it allows the use of mortise mechanical locks:
If your existing mechanical lock does not meet the above requirements and/or you do not want to change it, but you need access control to the premises, then you can use the Code Panel AC -20, -30C7 with a suitable electric lock.

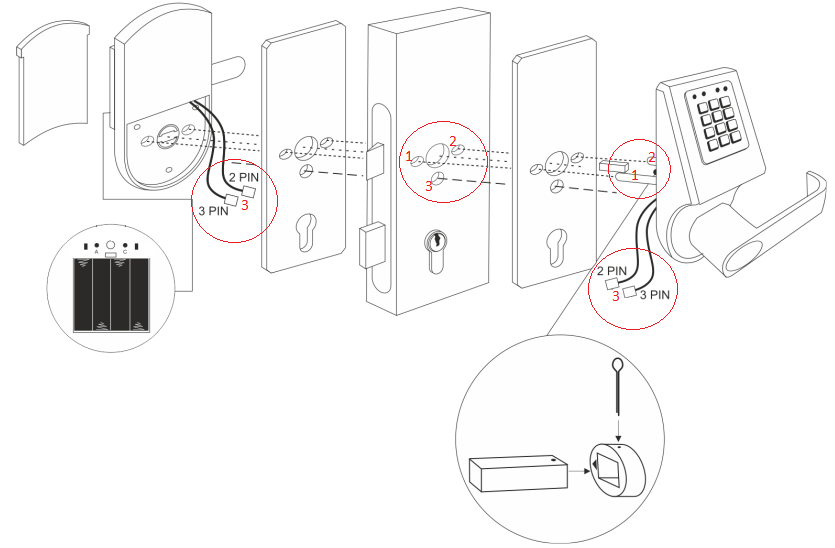

Self-installation of the ELH -70B9, -72B9:
<<< Installation and operation manual ELH-70B9.
Additionally:
If desired, instead of batteries, you can power the door handles with access control from a 230V electrical network. To do this, you can additionally buy a PSC1205 power supply for 12V and a voltage converter 12V --> 6V ELW-90B9.
For doors thicker than 40 mm, a 2S 4x60 screw kit must be purchased.
For doors thicker than 50mm, you need to buy pin ELH-06B9.
Technical specifications:
| Lock sign | |
| Supply voltage | 6V DC |
| Protection factor | IP20 |
| Proximity reader | Yes |
| Housing material | Zinc alloy |
| Power type | Alkaline batteries (4 x AA 1.5V) |
| Power consumption - standby / work | 16 μA / 72 mA |
| Permissible relative humidity | <80% |
| Purpose for the door | Left / Right |
| Duration of the deceleration impulse | Approx. 5 sec. |
| Recommended installation location | indoors |
| Built-in memory | 100 key rings + 25 codes |
| Reader type | Unique 125 kHz |
| Encryptor | Yes |
| Fingerprint reader | Not |
| Temperature range of operation | -10ºC ~ +70ºC |
| Dimensions of the external escutcheon (H x W x D) | 154 x 74 x 77 mm |
| Internal escutcheon dimensions (H x W x D) | 152 x 76 x 70 mm |
| Net weight | 1670 g |
| Logistics data | |
| Packaging dimensions (H x W x D) | 184 x 245 x 93 mm |
| Gross weight | 1873 g |
| Package type | Cardboard |
